Weighing just 32 lbs. and boasting a 400-lb. weight capacity, the Jazzy Carbon HD is a game-changing heavy-duty travel power wheelchair. It folds and locks into position in mere seconds and will keep you comfortable with a padded seat back and extra-wide foot platform.
MSRP $4,299

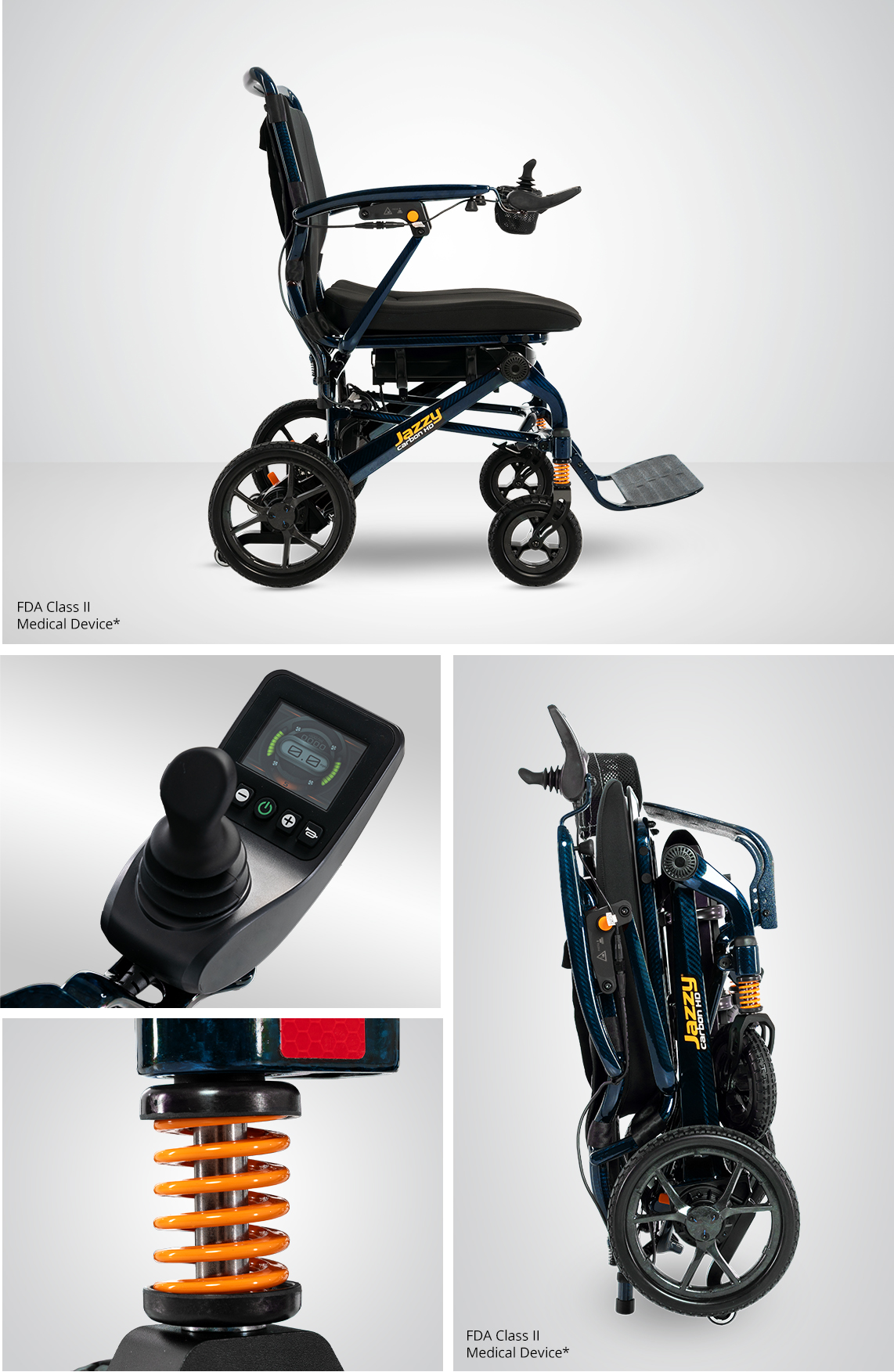

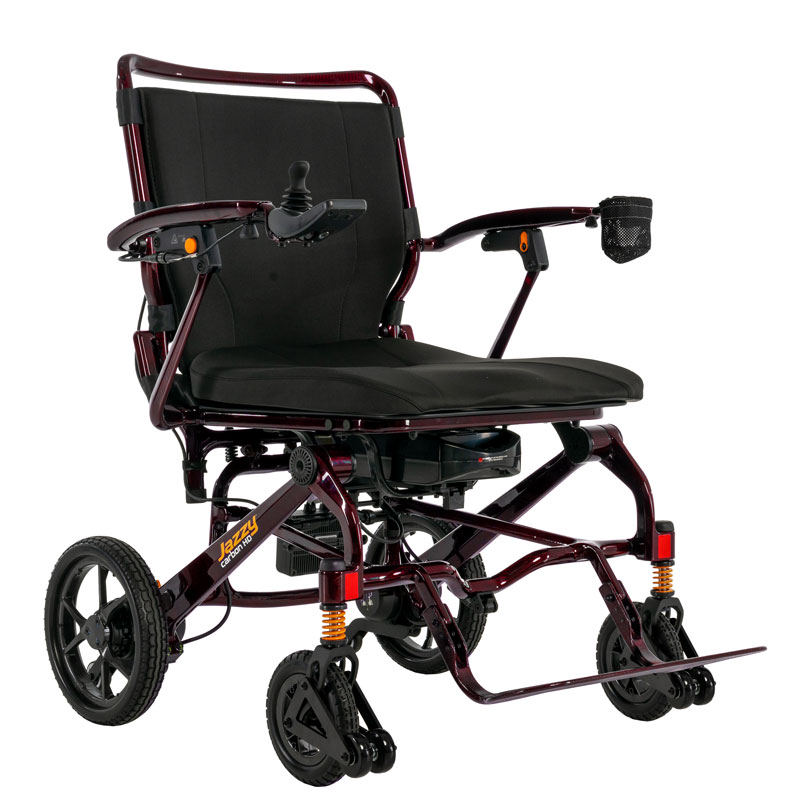

Jazzy® Carbon HD
Weighing just 32 lbs. and boasting a 400-lb. weight capacity, the Jazzy Carbon HD is a game-changing heavy-duty travel power wheelchair. It folds and locks into position in mere seconds and will keep you comfortable with a padded seat back and extra-wide foot platform.
Heavy-duty mobility meets lightweight mobility.
The wait is over for a travel friendly, heavy-duty, power wheelchair built for portability. The Jazzy® Carbon HD offers a 400-lb. weight capacity, weighs 32.2 lbs. without the battery, has a durable carbon fiber frame, and gives you a greater level of independence throughout your travels.
Easy to fold, easy to lift, easy to transport.
The Jazzy® Carbon HD folds in just a few seconds and locks securely into position. It is also one of the lightest models in the Pride® Mobility fleet and engineered for convenient storage and transport. When it comes time to ride again, it is just as easy to unfold and go.
Your comfort is paramount.
The roomy 20 x 20” seat, adjustable padded seat back, removable cushion, and extra-wide adjustable foot platform are designed for your comfort. It also has front and rear suspension providing a smooth ride over varied terrain. Jazzy® is known for world-class quality, a commitment to the industry’s most rigorous testing standards, and proven performance over three decades. You will get all of that with the Jazzy® Carbon HD! Travel worry-free and experience the best in lightweight portability!
Jazzy® Carbon HD Features:
- Unit weighs 32.2 lbs. without the battery
- 400-lb. weight capacity
- Durable carbon fiber frame
- Front and rear suspension
- Top speed of up to 3.7 mph
- Battery range of up to 12.4 miles
- 20" x 20" seat
- Easy fold design that locks into folded position
- Folded dimensions: 31.3” L x 26.4” W x 13 H
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion
- Extra-wide adjustable foot platform 17.25” W x 5.9” D
- 20 Ah lithium battery (standard)
- Storage pocket on back of seat
- Quick disconnect LCD joystick with digital display, USB-C port & puddle light
- Mesh cup holder, cushion, and adjustable lap belt, (standard)
- K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.
- Available Colors: Black Cherry, Night Sky
Specifications
| Colour | |
|---|---|
| Suspension | |
| Weight Capacity | |
| Battery Type | |
| Turning Radius | 36.4" |
| Maximum Speed | Up to 6.0 km/h |
| Ground Clearance | 1” at motor |
| Overall Length | 36.81" |
| Overall Width | 26.37" |
| Front Wheels | 6.5" |
| Rear Wheels | 10.6" |
| Battery Sizes | Type: Lithium battery box. Size 20 Ah |
| Total Weight Without Batteries | 32.2 lbs. without batteries |
| Total Weight With Batteries | 39.7 lbs. |
| Standard Seating | Dimensions: 20" x 20" seat. Seat sling with removable cushion |
| Drivetrain | 24V 250W Brushless motors |
| Battery Charger | 2 Amp |
Testing Standards & Warranty
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance. Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use. The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA). The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team. All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride. Some of the items our testing criteria include are:- Product Stability & Brakes Effectiveness Tests
- Fatigue & Impact Strength Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Product Durability & Reliability Testing
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Weather Operation Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
Warranty PDF
- Lifetime limited on frame;
- 1-year limited on electronics;
- 1-year on drive motors
- 1- limited on batteries.
